FEATURES:
- Low profile design minimizes
tripping the public
- Low profile bases with stacking
slots reduce storage space need.
- Extra pin holes can be drilled
to your specifications for an additional cost.
- All steel base plates are zinc
plated for rust protection and long life.
- Special Order Black Powder Coated
Bases are available for an additional cost (call
for prices)

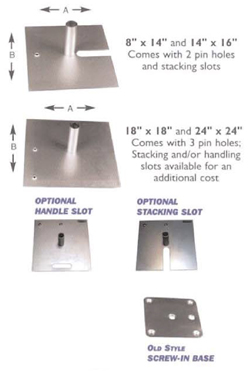

| Part # |
"A"
|
"B" |
Thick |
Weight |
Recommended
Uprights |
Standard Pin Size* |
| B814 |
8" |
14" |
3/16" |
6 lbs |
3' |
1.5" |
| B1416 |
14" |
16" |
3/16" |
12 lbs |
8' |
1.5" |
| B1818 |
18" |
18" |
3/16" |
17.5 lbs |
Up to 12' |
2" x 4" |
| B181838 |
18" |
18" |
3/8" |
35 lbs |
Up to 16' |
2" x 6" |
| B2424 |
24" |
24" |
3/16" |
31 lbs |
Up to 20' |
2" x 8" |
| B242438 |
24" |
24" |
3/8" |
62 lbs |
Up to 24' |
2" x 8" |
NOTE: * All above PIN sizes
can be used on any of the BASES
All above BASE ASSEMBLIES include a SLIP FIT PIN
All ADJUSTABLE UPRIGHTS use 2" diameter pins.
| SCREW-IN
BASE |
| Part
# |
Size |
| B1111 |
11" x 11" |
| B1515 |
15" x 15" |
| B2424S |
24" x 24" |
|
|
|
 |
Click
here to download the printable
ExH2 PDF!
|
